Single Phase NETs

Single-phase NETs reduce the insulation requirements of the associated NER by stepping down the secondary voltage. This results in a smaller and more economical solution. In some cases, an additional NER may be required to meet total system impedance. These units also provide a degree of harmonic mitigation.

Three Phase Zigzag Transformers

Zigzag NETs are used to establish a neutral point in systems where one does not exist, such as isolated or delta-connected networks. These can also be paired with an NER to meet desired fault current levels if the transformer alone provides insufficient impedance.

Supply Options

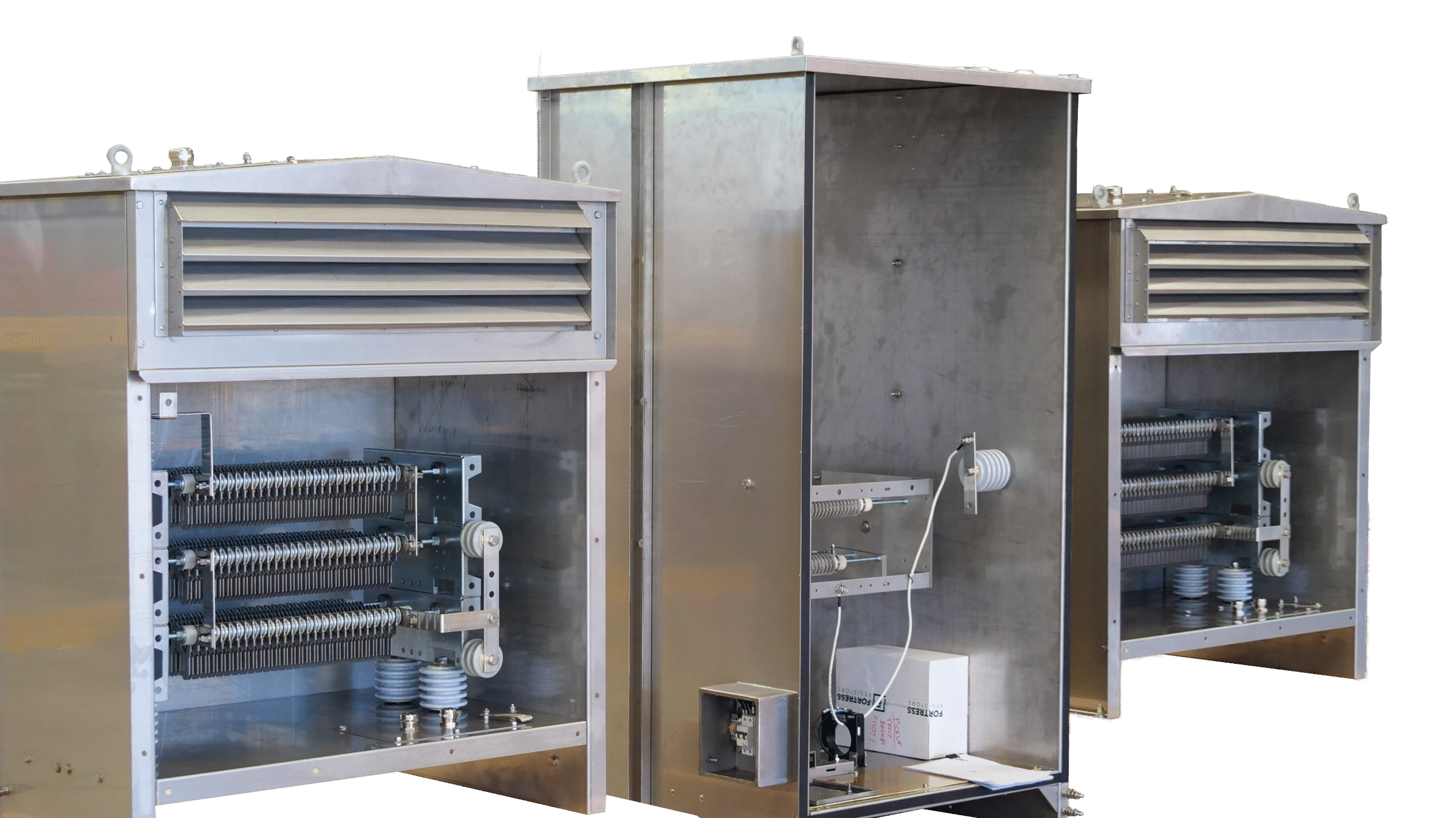

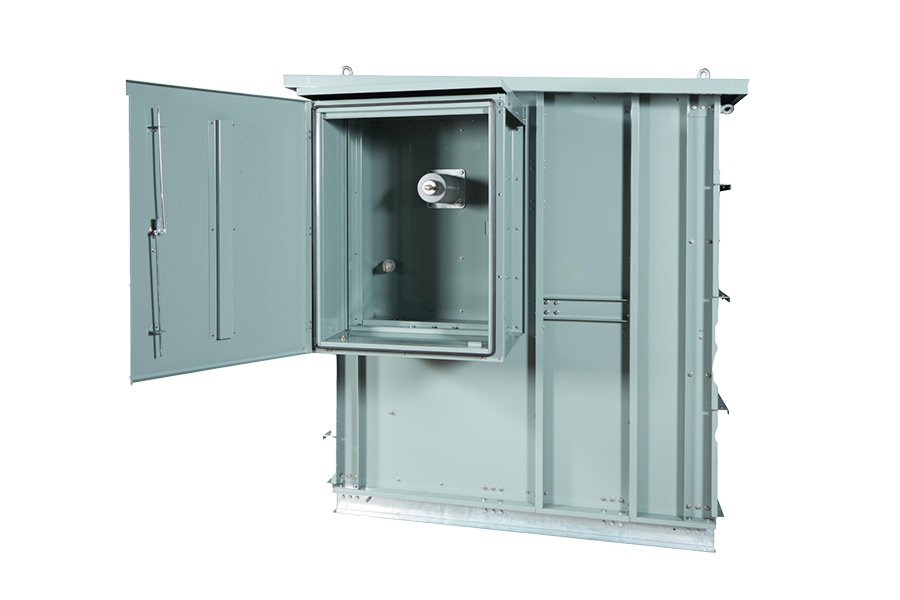

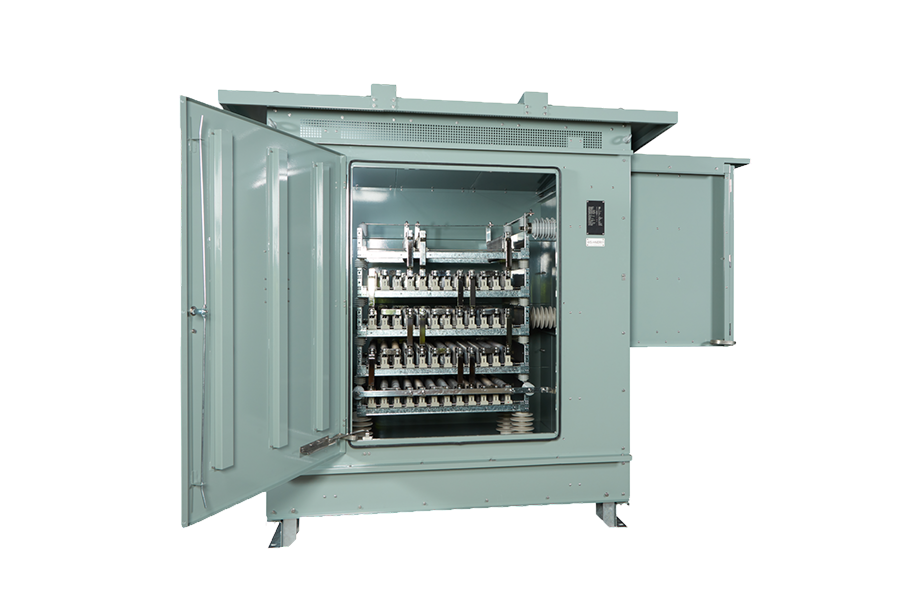

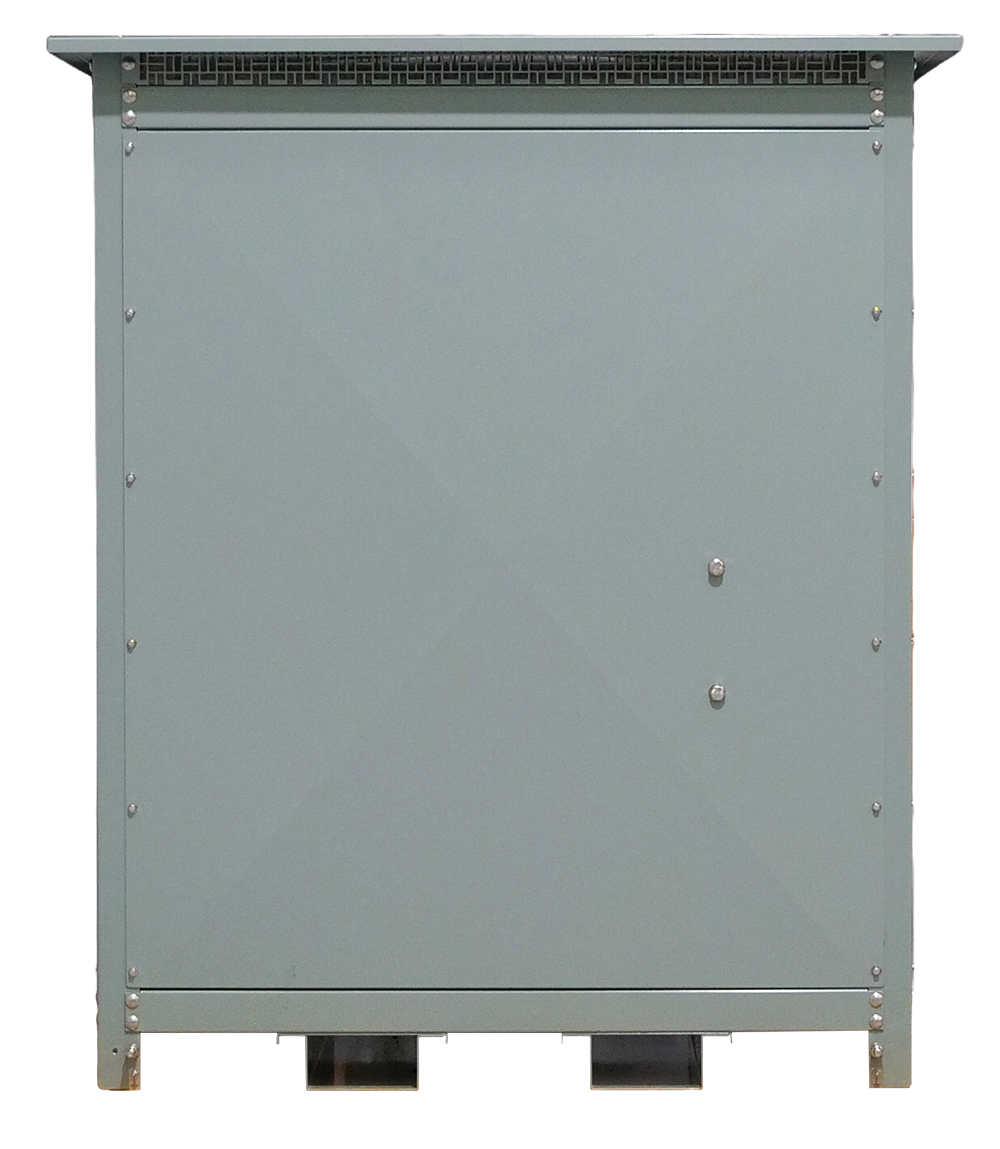

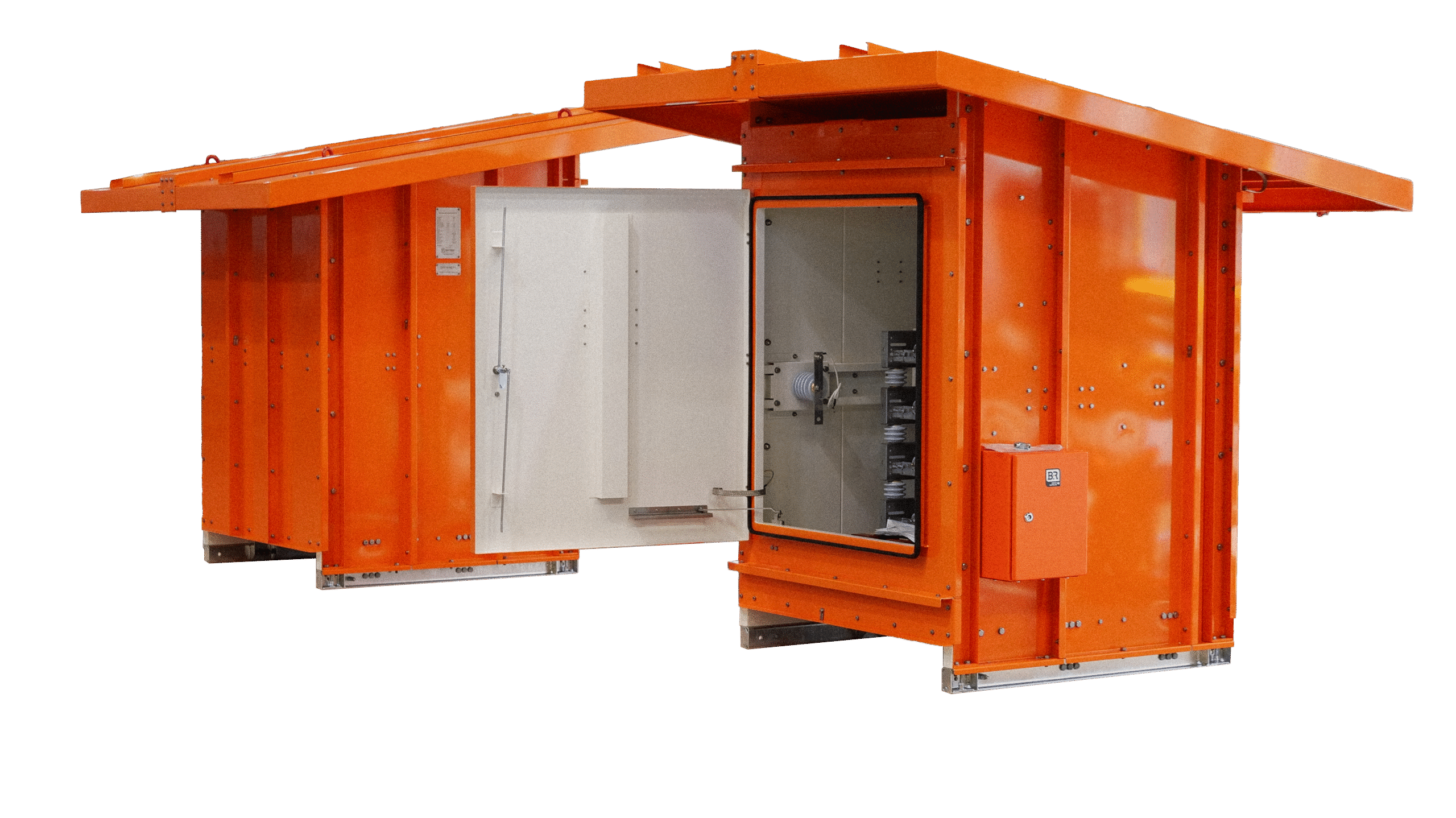

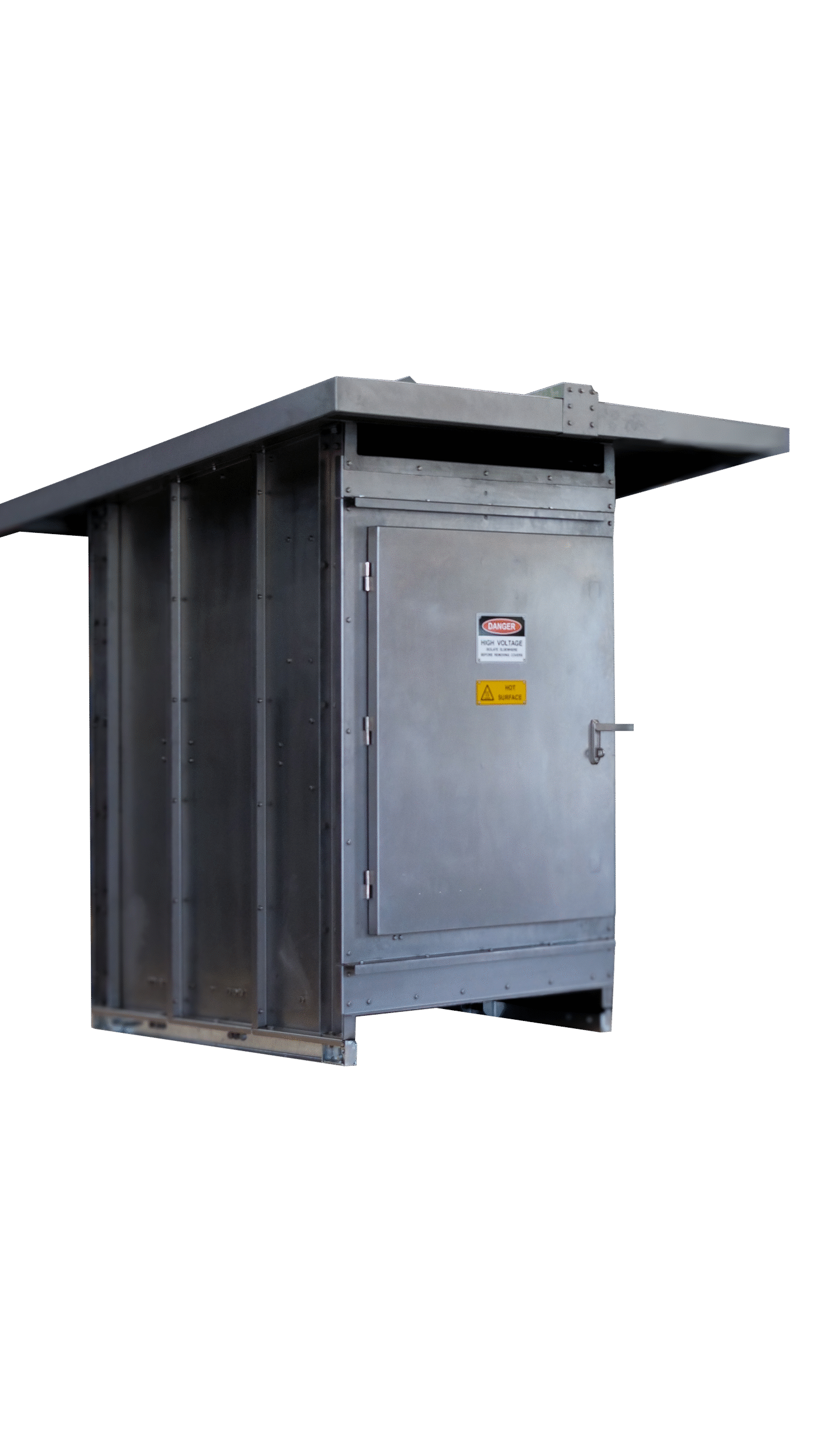

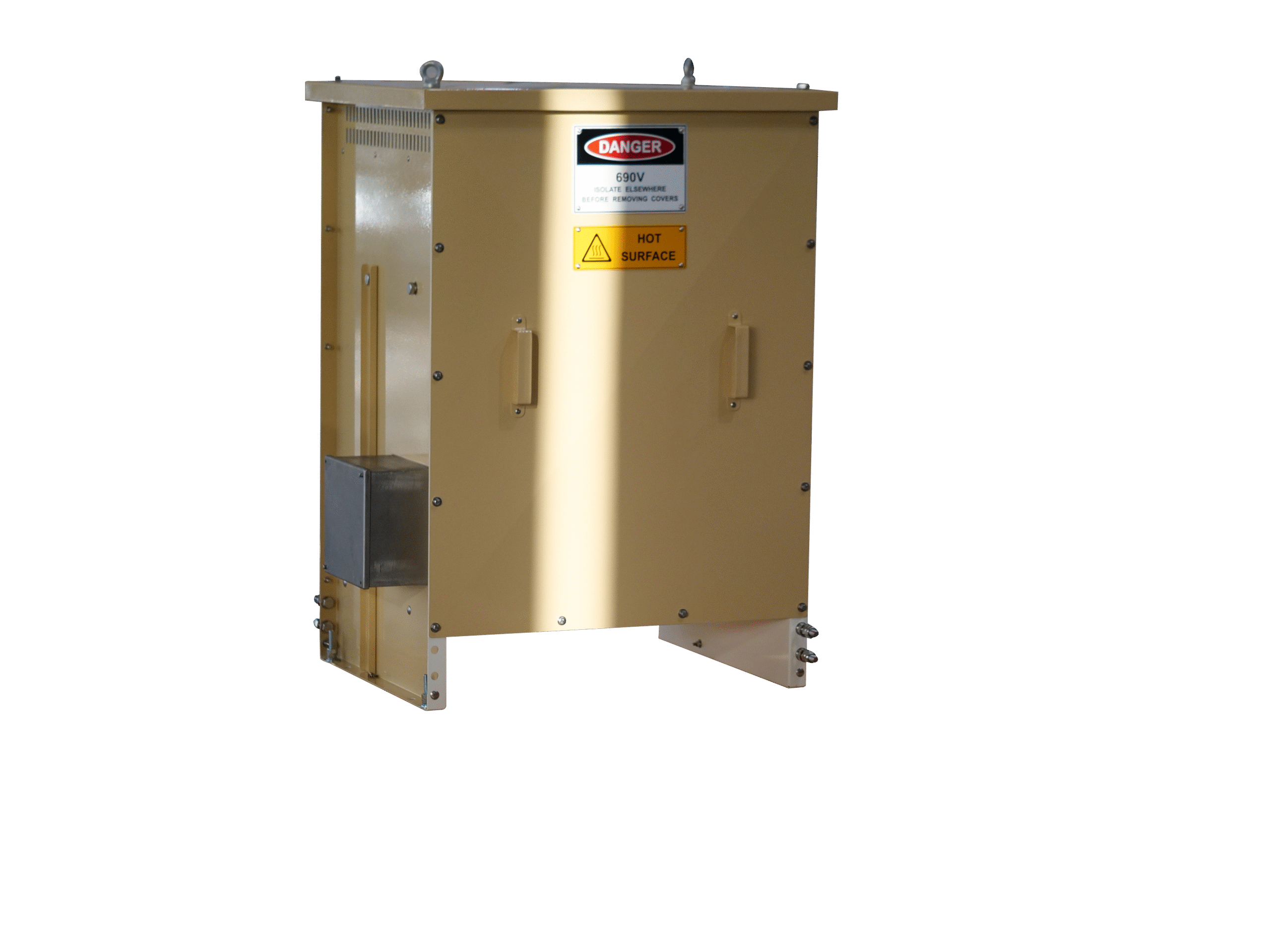

Fortress offers flexible delivery formats depending on project size and system architecture. Available options include enclosed standalone NETs, integrated NET/NER units, or full skid-mounted assemblies with switchgear, monitoring, and protective enclosures.

What information is required to request a quote?

To ensure we deliver a fully tailored solution, please provide key system details such as rated power (continuous and short-time load), primary and secondary voltages, required impedance, number of phases, and preferred construction type (dry or oil). It’s also helpful to confirm the operating frequency, connection symbol or vector group, ambient conditions, and any compliance requirements such as IP rating, temperature sensing, or current transformer integration.
